it has a hot and cold air control system to effectively improve the quality of the leaves. various types of machines can be customized according to user requirements.

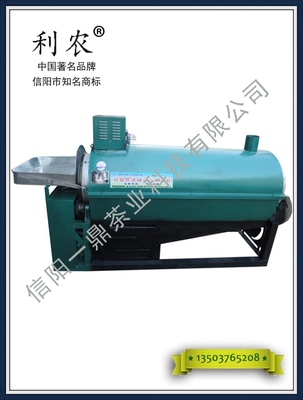

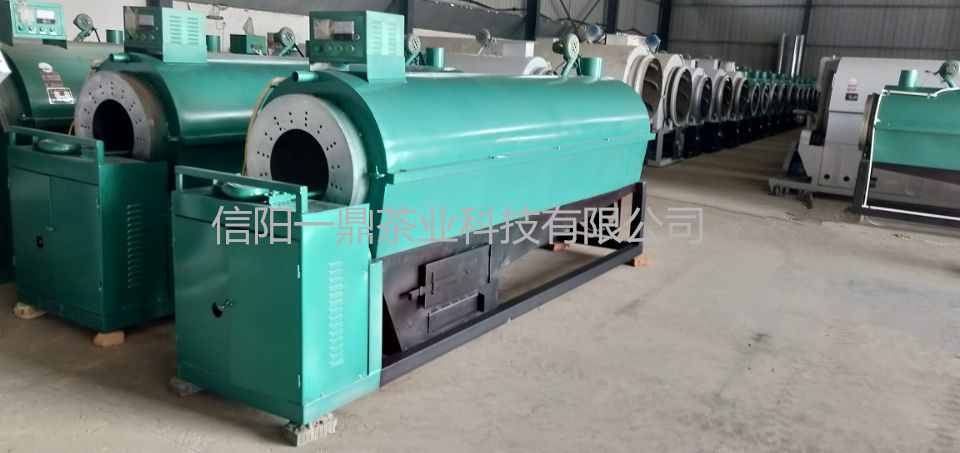

this series of tea drum crusher is one of the main products produced by our factory. the machine uses the operation of the cylinder to allow the tea leaves to pass through the vanes in the cylinder and deliver them without interruption. its characteristics: 1, high temperature, easy to operate; 2, the machine has high hot air temperature, strong penetrating power, good green leaf color, complete leaf body, high aroma, effectively guarantee the internal nutrient content of tea; 3, killing efficiency high, suitable for tea factory to carry out assembly line operations; 4, the machine can be used to kill, can also be used for drying, roasting, and a wide range of uses.
second, technical parameters
project | unit | specification |
dimensions | mm | 3340×820×1530 |
supporting power | kw | 1.0 |
taiwan production | kg/h | 50-90 |
killing temperature | ℃ | 100-180 |
roller diameter | cm | 55cm |
machine quality | kg | 980 |
third, the working principle
the heat inside the machine is mainly supplied by the lower furnace. the tea leaves are put into the cylinder through the feeding port, and are sent into the high temperature cylinder. during the continuous movement of the drum, the tea leaves are evenly heated. the fresh leaves enter the high-heat cylinder. with the rotation of the cylinder, under the action of the spiral guide vanes on the inner wall of the cylinder, the cylinders are tumbling and alternately contacted with the wall of the cylinder to heat up to achieve the purpose of killing.
