improve the new series, the tea is efficient, the strip is fast, the strip is round, and the tea hole is unloaded.
overview of functions and principles
the principle is to use the crank-link mechanism to drive the cymbal barrel to make a circular motion on the cymbal disk, and the combined action of the stern lid, the cymbal disk and the ribs destroys the leaf cells, thereby completing the sputum process. this embarrassing method has a long history of application, and it can complete the operation of various strips of tea in combination with appropriate techniques.
third, downtime process
after the greening, the tea is quantitatively loaded into the barrel, and the barrel is horizontally rotated in the tray. the tea in the barrel is subjected to the pressure of the lid, the reaction force of the tray, the force of the bone and the side pressure of the barrel. the tea leaves are smashed into pieces, and some of the leaf cells are broken, and the tea juice overflows to achieve the purpose. when the sputum is finished, the door is opened and the tea leaves are all dropped, and the next process can be flowed.
fourth, the structure and overview

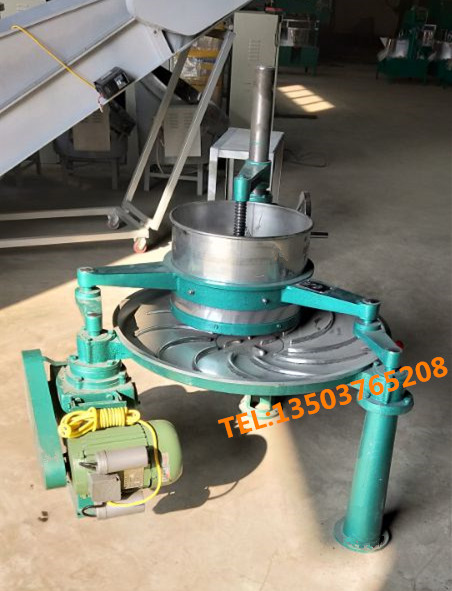

this machine is composed of four main parts: gear reduction transmission machine, smashing disc and tea door mechanism, crank arm slewing mechanism, stern barrel and pressing mechanism.
(1) transmission: it is the transmission of the machine, which is mainly composed of casting parts and machine parts.
(2) outriggers and bearing blocks: it is the basis for the installation work of the boring machine, and the movement of the crank arm is used to achieve the smashing effect.
(3) gantry pressurizing device: mainly includes: gantry frame, gantry shaft, pressure gear, bearing, etc.
(4) nianrou parts: the main working surface of the rounian operation, mainly including: rou, brackets, bearings, etc.
fifth, the main technical parameters
model dimensions (length × width × height mm) machine quality (kg) barrel diameter (mm) power (kw)
6cr-30 750×700×930 89 300 0.75
6cr-35 950×830×1100 190 350 0.75
6cr-40 1050×900×1100 198 400 1.1
6cr-45 1100×100×1200 270 450 1.5
6cr-55 1350×1180×1580 410 5 500 2.2
sixth, use and maintenance
(1) check and ensure that there is no foreign matter inside the barrel before the material is used.
(2) check the amount of mechanical oil in the gear box. it is not enough to add no. 10 mechanical oil to the box.
(3) check if the bolts, screws and bolts of each joint are tight.
(4) pull the belt by hand, if there is any jam or abnormality, confirm the normal empty machine test run.
(5) prepare the work, open the pressure gland, close the exit door, and put a proper amount of green leaves into the bucket.
(6) close the pressure cap, so that the lid enters the barrel about 30mm, start the operation, and then gradually pressurize it until it is added. then go to the air for a minute, from the loose group, the rule, the adsorption of tea juice, etc., you can open the tea door to tea, clean, you can carry out the second operation.
(7) if the equipment is shut down and not used for a long time, the debris on the surface of each rotating component should be cleaned manually, and the proper lubricating oil should be added to the transmission system and reducer, and then the equipment should be properly packaged and sealed.
